DQN and Q-Learning on the CartPole Environment Using Coach

A practical workshop that uses coach to train deep Q-networks and Q-learning to balance a pole.

The Cartpole environment is a popular simple environment with a continuous state space and a discrete action space. Nervana Systems coach provides a simple interface to experiment with a variety of algorithms and environments. In this workshop you will use coach to train an agent to balance a pole.

Environment

The environment simulates balancing a pole on a cart. The agent can nudge the cart left or right; these are the actions. It represents the state with a position on the x-axis, the velocity of the cart, the velocity of the tip of the pole and the angle of the pole (0° is straight up). The agent receives a reward of 1 for every step taken. The episode ends when the pole angle is more than ±12°, the cart position is more than ±2.4 (the edge of the display) or the episode length is greater than 200 steps. To solve the environment you need an average reward greater than or equal to 195 over 100 consecutive trials.

Coach Presets

Coach has a concept of presets which are settings for algorithms that are known to work.

DQN Preset

The CartPole_DQN preset has a solution to solve the CartPole environment with a DQN. I took this preset and made a few alterations to leave the following parameters:

  • It copies the target weights to the online weights every 100 steps of the environment
  • The discount factor is set to 0.99
  • The maximum size of the memory is 40,000 experiences
  • It uses a constant greedy schedule of 0.05 (to make the plots consistent)
  • The NN uses a mean-squared error (MSE) based loss, rather than the default Huber loss.
  • No environment “warmup” to pre-populate the memory (to obtain a result from the beginning)

You can see the full DQN preset I used below:

# dqn_preset.py
# Adapted from https://github.com/NervanaSystems/coach/blob/master/rl_coach/presets/CartPole_DQN.py

from rl_coach.agents.dqn_agent import DQNAgentParameters
from rl_coach.base_parameters import VisualizationParameters
from rl_coach.core_types import EnvironmentEpisodes, EnvironmentSteps
from rl_coach.environments.gym_environment import GymVectorEnvironment
from rl_coach.graph_managers.basic_rl_graph_manager import BasicRLGraphManager
from rl_coach.graph_managers.graph_manager import ScheduleParameters
from rl_coach.memories.memory import MemoryGranularity
from rl_coach.schedules import ConstantSchedule

####################
# Graph Scheduling #
####################

schedule_params = ScheduleParameters()
schedule_params.improve_steps = EnvironmentEpisodes(200)
schedule_params.steps_between_evaluation_periods = EnvironmentEpisodes(10)
schedule_params.evaluation_steps = EnvironmentEpisodes(1)
schedule_params.heatup_steps = EnvironmentSteps(0)

#########
# Agent #
#########
agent_params = DQNAgentParameters()

# DQN params
agent_params.algorithm.num_steps_between_copying_online_weights_to_target = EnvironmentSteps(
    100)
agent_params.algorithm.discount = 0.99
agent_params.algorithm.num_consecutive_playing_steps = EnvironmentSteps(1)

# NN configuration
agent_params.network_wrappers['main'].learning_rate = 0.00025
agent_params.network_wrappers['main'].replace_mse_with_huber_loss = False

# ER size
agent_params.memory.max_size = (MemoryGranularity.Transitions, 40000)

# E-Greedy schedule
agent_params.exploration.epsilon_schedule = ConstantSchedule(0.05)

################
#  Environment #
################
env_params = GymVectorEnvironment(level='CartPole-v0')

graph_manager = BasicRLGraphManager(agent_params=agent_params, env_params=env_params,
                                    schedule_params=schedule_params, vis_params=VisualizationParameters())

Q-Learning Agent and Preset

Coach doesn’t have a basic Q-learning algorithm or preset, so I implemented my own. You can see the code below.

# q_learning_agent.py

import math
import random
from collections import defaultdict
from typing import Union

import numpy as np
from rl_coach.agents.agent import Agent
from rl_coach.base_parameters import AgentParameters, AlgorithmParameters
from rl_coach.core_types import ActionInfo, EnvironmentSteps
from rl_coach.exploration_policies.e_greedy import EGreedyParameters
from rl_coach.memories.non_episodic.experience_replay import \
    ExperienceReplayParameters


class QLearningAlgorithmParameters(AlgorithmParameters):
    def __init__(self):
        super().__init__()
        self.discount = 0.99
        self.num_consecutive_playing_steps = EnvironmentSteps(1)


class QLearningAgentParameters(AgentParameters):
    def __init__(self, default_q=0, alpha=0.1):
        super().__init__(algorithm=QLearningAlgorithmParameters(),
                         exploration=EGreedyParameters(),
                         memory=ExperienceReplayParameters(),
                         networks={})
        self.default_q = default_q
        self.alpha = alpha

    @property
    def path(self):
        return 'q_learning_agent:QLearningAgent'


class QLearningAgent(Agent):
    def __init__(self, agent_parameters,
                 parent: Union['LevelManager', 'CompositeAgent'] = None):
        super().__init__(agent_parameters, parent)
        self.default_q = self.ap.default_q
        self.q_func = defaultdict(lambda: defaultdict(lambda: self.default_q))

    def train(self) -> float:
        loss = 0
        if self._should_train():
            # Required: State, action, reward
            transition = self.current_episode_buffer.get_last_transition()
            if transition is None:
                return loss
            state = tuple(transition.state["observation"])
            action = transition.action
            reward = transition.reward
            actions_q_values = self.get_all_q_values_for_states(
                transition.next_state)
            max_q_next_state = np.max(actions_q_values)
            delta = (reward + self.ap.algorithm.discount *
                     max_q_next_state - self.q_func[state][action])
            self.q_func[state][action] += self.ap.alpha * delta

            # Coach want's me to return the total training loss, but we're not
            # really training. Instead, I will return the TD error.
            loss = np.abs(delta)
        return loss

    def get_all_q_values_for_states(self, state):
        # This is almost a replica of the ValueIterationAgent. Probably could
        # be refactored to use that.
        state = tuple(state["observation"])
        l = np.array([self.q_func[state][a]
                      for a in self.spaces.action.actions])
        # Add a little random noise to all q_values to prevent ties
        # See https://github.com/NervanaSystems/coach/issues/414
        l = l + np.random.normal(loc=0, scale=0.000000001, size=l.shape)
        return l

    def choose_action(self, curr_state):
        actions_q_values = self.get_all_q_values_for_states(curr_state)
        action, action_probabilities = self.exploration_policy.get_action(
            actions_q_values)
        action_info = ActionInfo(action=action,
                                 action_value=actions_q_values[action],
                                 max_action_value=np.max(actions_q_values),
                                 all_action_probabilities=action_probabilities)
        return action_info

Then the preset looks like:

# q_learning_agent_preset.py

import numpy as np
from rl_coach.core_types import EnvironmentEpisodes, EnvironmentSteps
from rl_coach.environments.gym_environment import GymVectorEnvironment
from rl_coach.filters.filter import InputFilter
from rl_coach.filters.observation.observation_crop_filter import \
    ObservationCropFilter
from rl_coach.graph_managers.basic_rl_graph_manager import BasicRLGraphManager
from rl_coach.graph_managers.graph_manager import ScheduleParameters
from rl_coach.schedules import ConstantSchedule

import q_learning_agent
from CustomObservationFilters import (ObservationRoundingFilter,
                                      ObservationScalingFilter)

####################
# Graph Scheduling #
####################

schedule_params = ScheduleParameters()
schedule_params.improve_steps = EnvironmentEpisodes(200)
schedule_params.steps_between_evaluation_periods = EnvironmentEpisodes(10)
schedule_params.evaluation_steps = EnvironmentEpisodes(1)
schedule_params.heatup_steps = EnvironmentSteps(0)

#########
# Agent #
#########
agent_params = q_learning_agent.QLearningAgentParameters(alpha=0.5)
agent_params.algorithm.discount = 0.99

# Simplify the observations. I want to only use the angle and angular velocity.
# And I want to place the continuous observations into bins. This is achieved
# by multiplying by 10 and rounding to an integer. This limits the total number
# of states to about 150.
agent_params.input_filter = InputFilter()
agent_params.input_filter.add_observation_filter(
    "observation",
    "cropping",
    ObservationCropFilter(crop_low=np.array([2]), crop_high=np.array([4])),
)
agent_params.input_filter.add_observation_filter(
    "observation", "scaling", ObservationScalingFilter(10.0)
)

agent_params.input_filter.add_observation_filter(
    "observation", "rounding", ObservationRoundingFilter()
)

# E-Greedy schedule
agent_params.exploration.epsilon_schedule = ConstantSchedule(0.05)

################
#  Environment #
################
env_params = GymVectorEnvironment(level="CartPole-v0")

graph_manager = BasicRLGraphManager(
    agent_params=agent_params, env_params=env_params, schedule_params=schedule_params
)

Random Agent and Preset

To provide a baseline for the other algorithms, I implemented a random agent and preset because coach doesn’t provide one out of the box.

# random_agent.py

from typing import Union

from rl_coach.agents.agent import Agent
from rl_coach.base_parameters import AlgorithmParameters, AgentParameters
from rl_coach.core_types import ActionInfo
from rl_coach.exploration_policies.e_greedy import EGreedyParameters
from rl_coach.memories.non_episodic.experience_replay import ExperienceReplayParameters


class RandomAgentParameters(AgentParameters):
    def __init__(self):
        super().__init__(algorithm=AlgorithmParameters(),
                         exploration=EGreedyParameters(),
                         memory=ExperienceReplayParameters(),
                         networks={})

    @property
    def path(self):
        return 'random_agent:RandomAgent'


class RandomAgent(Agent):
    def __init__(self, agent_parameters,
                 parent: Union['LevelManager', 'CompositeAgent'] = None):
        super().__init__(agent_parameters, parent)

    def train(self):
        return 0

    def choose_action(self, curr_state):
        action_info = ActionInfo(
            action=self.exploration_policy.action_space.sample())
        return action_info

And the preset:

# random_agent_preset.py

from rl_coach.core_types import EnvironmentEpisodes, EnvironmentSteps
from rl_coach.environments.gym_environment import GymVectorEnvironment
from rl_coach.graph_managers.basic_rl_graph_manager import BasicRLGraphManager
from rl_coach.graph_managers.graph_manager import ScheduleParameters
import random_agent

####################
# Graph Scheduling #
####################

schedule_params = ScheduleParameters()
schedule_params.improve_steps = EnvironmentEpisodes(200)
schedule_params.steps_between_evaluation_periods = EnvironmentEpisodes(200)
schedule_params.evaluation_steps = EnvironmentEpisodes(1)
schedule_params.heatup_steps = EnvironmentSteps(0)

#########
# Agent #
#########
agent_params = random_agent.RandomAgentParameters()

################
#  Environment #
################
env_params = GymVectorEnvironment(level='CartPole-v0')
graph_manager = BasicRLGraphManager(agent_params=agent_params, env_params=env_params,
                                    schedule_params=schedule_params)

Setting Up Coach

Most of coach’s algorithms are deep, which means that they need quite a lot of horsepower and time to run. The coach library is therefore NOT designed to be run in a Notebook or on your laptop. Of course this is possible, but it is not intended. So the path of least resistance is to setup a quick Ubuntu VM in your preferred cloud and run the training on there.

Information

Using a VM for training is not a safe or scalable solution for your business. Find out more about operational reinforcement learning (RLOps) here. (TODO!)

To setup coach on an Ubuntu VM, use the following commands:

#!/bin/bash

# Coach prerequisites
# General
sudo -E apt-get install python3-pip cmake zlib1g-dev python3-tk python-opencv -y

# Boost libraries
sudo -E apt-get install libboost-all-dev -y

# Scipy requirements
sudo -E apt-get install libblas-dev liblapack-dev libatlas-base-dev gfortran -y

# PyGame
sudo -E apt-get install libsdl-dev libsdl-image1.2-dev libsdl-mixer1.2-dev libsdl-ttf2.0-dev libsmpeg-dev libportmidi-dev libavformat-dev libswscale-dev -y

# Dashboard
sudo -E apt-get install dpkg-dev build-essential python3.5-dev libjpeg-dev  libtiff-dev libsdl1.2-dev libnotify-dev freeglut3 freeglut3-dev libsm-dev libgtk2.0-dev libgtk-3-dev libwebkitgtk-dev libgtk-3-dev libwebkitgtk-3.0-dev libgstreamer-plugins-base1.0-dev -y

# Gym
sudo -E apt-get install libav-tools libsdl2-dev swig cmake -y

sudo -E pip3 install virtualenv
virtualenv -p python3 .venv
. .venv/bin/activate

# Coach
pip install setuptools==41.4.0
pip install rl-coach==1.0.1 gym==0.12.5
pip install gym[atari]
coach --help

Running the Experiment

That’s quite a lot of configuration code, but once it’s done, you can run these presets via the command line.

# Call coach using the cartpole preset
coach -p dqn_preset.py -e cartpole_dqn -ep experiments --dump_mp4 --dump_gifs --seed 42 --no_summary
# Random preset
coach -p random_agent_preset.py -e cartpole_random -ep experiments --dump_mp4 --dump_gifs --seed 42 --no_summary
# Q-Learning preset
coach -p q_learning_agent_preset.py -e cartpole_q_learning -ep experiments --dump_mp4 --dump_gifs --seed 42 --no_summary

Results

You can generate performance plots from the resulting json files. I’m not going to provide the code to do that, because it depends how you’re running coach. But the result would look like the image below:

Both DQN and Q-learning are capable of finding an optimal policy. The random policy is able to achieve an average reward of approximately 25 steps. This is due to the environment physics. It takes that long for the pole to fall. The Q-learning agent initially performs better than the DQN. This is because the DQN needs a certain amount of data before it can train a reasonable model of the Q-values. The precise amount of data required depends on the complexity of the deep neural network and the size of the state space. The Q-learning agent sometimes performs poorly due to the greedy random action. In contrast, DQN is capable of generalizing to states that it hasn’t seen before, so performance is more stable.

And finally, below are a few gifs showing an episode from the training.

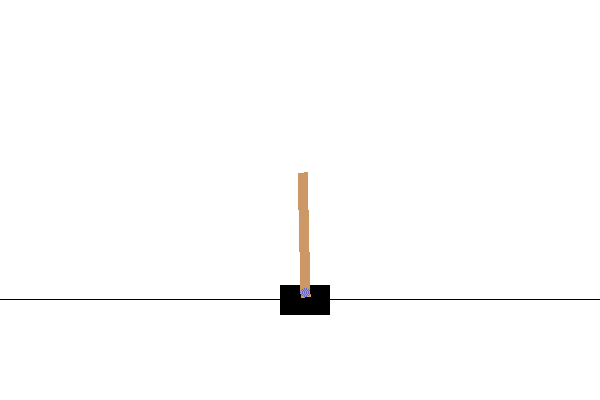

Random

Random

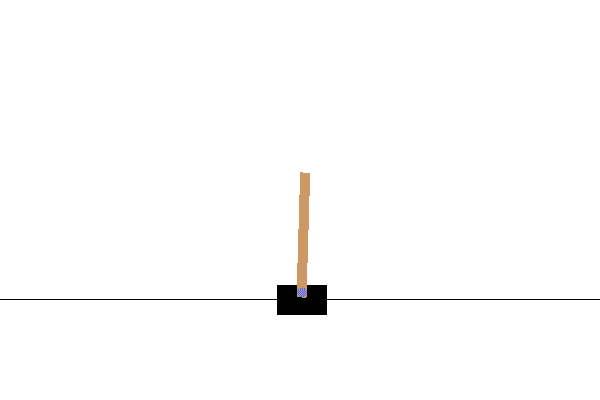

Q-Learning

Q-Learning

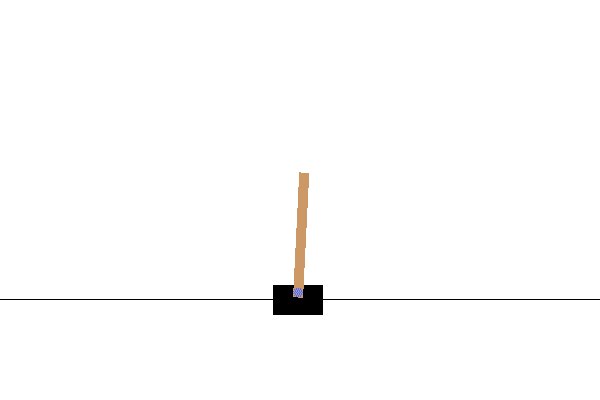

DQN

DQN
